When designing or specifying a hot gas filtration system, it’s easy to focus on flow rates, temperatures, or emissions limits. But beneath those variables lies one crucial detail: the geometry of the filter elements. The shape, length, and internal layout of ceramic filters directly influence not only pressure drop and gas flow, but also how efficiently the system self-cleans.
This article explores how filter geometry affects pulse cleaning efficiency, pressure stability, and long-term emissions performance—particularly in high-temperature, high-dust environments.
What Is Filter Geometry?
In ceramic filtration, “geometry” refers to the physical structure of each element—typically a closed-end, extruded monolith. Parameters include element length, diameter, wall thickness, number of internal channels, and whether those channels are circular, square, or shaped for increased surface area. These design choices determine both the filtering area and the resistance to gas flow.
Longer elements increase surface area but may raise pressure drop, especially if gas velocity or dust load is high. Thinner walls improve permeability but reduce mechanical strength. The number and shape of channels control both dust cake formation and how effectively that cake can be dislodged during pulse cleaning.
Pulse Cleaning: The Role of Geometry
Pulse cleaning in ceramic filters relies on short bursts of compressed air that travel down each element’s internal channel, reversing the gas flow and detaching the outer dust cake. For this to work efficiently, the pulse must travel uniformly and exert enough force without damaging the element. Filter geometry has a major influence on this.
Long, narrow elements may dampen the cleaning wave before it reaches the far end. Wider channels or optimised internal shapes help maintain pulse energy along the full length. Similarly, poorly shaped or uneven channel arrangements can create zones of low cleaning force, where cake builds up over time and leads to localised clogging or rising pressure drop.

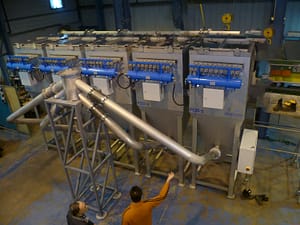

At Glosfume, for example, pulse cleaning performance is modelled during the design phase using airflow and pressure wave simulations. Element geometry is matched to system pulse duration, nozzle layout, and cleaning frequency to ensure that cleaning is effective across the entire array—not just in ideal conditions.
Pressure Drop and Gas Distribution
Pressure drop is a key operational parameter in any ceramic filter system. It reflects how easily gas passes through the element and how quickly dust cake builds up. Element geometry determines base resistance—i.e., the clean filter pressure drop—and influences how that resistance grows over time.
Shorter or wider elements reduce resistance but lower overall filtration area. Denser channel arrangements offer more filtering surface but increase path complexity for gas flow. In multi-element arrays, uniform geometry is critical to avoid maldistribution, where some elements load faster than others and cause uneven wear or bypassing.
Smart geometry helps maintain a stable operating range—typically 15–25 mbar—allowing reliable pulse intervals and extended filter life. Systems that operate above or below this range can suffer from either excessive fan load or inadequate cake formation, both of which compromise emissions control.
Matching Geometry to Application
There is no one-size-fits-all solution. A compact gasifier at 500 m³/h may use short, low-resistance elements with wide channels to accommodate fine, sticky dust. A metal smelting plant at 900°C and 15,000 m³/h may require longer, denser elements with reinforced structure to handle high pressure and thermal shock. Element selection is based on a blend of process temperature, dust characteristics, cleaning logic, and space constraints.
Housing design, pulse nozzle spacing, and dust hopper configuration must also be considered. For systems retrofitting existing ductwork, matching geometry to space and access limitations is often as important as gas flow itself.
Filter geometry is not a passive choice—it’s a performance lever. From pressure drop and flow distribution to cleaning efficiency and emissions stability, the shape and layout of each ceramic element determines how your filtration system performs over years of operation.
By taking a geometry-first approach during system design or upgrade, engineers can ensure that ceramic filters deliver maximum capture with minimum energy use and cleaning demand. The result? Cleaner air, more reliable operation, and a longer return on investment.
